SS10-22 10" Signature Series DVC Subwoofer 2 Ohm per Coil
Quick Overview
The Dayton Audio SS10-22 Signature Series 10" Subwoofer is engineered for powerful, controlled bass from compact enclosures. With its rigid anodized aluminum cone, dual-spider suspension, and a massive triple-stacked motor structure, the SS10-22 maintains pistonic accuracy and low distortion even at extreme excursion. A 2.5" 4-layer copper voice coil on a vented aluminum former ensures excellent thermal handling, allowing the driver to manage up to 700 watts RMS without compression. Designed for DSP-assisted sealed enclosures or compact vented/passive radiator systems, the SS10-22 is equally at home in home theater, hi-fi listening rooms, or car audio installations where deep bass performance in a smaller footprint is required.Product Highlights
- Aluminum shorting sleeve, ring, and pole cap ensure linear inductance and ultra-low distortion
- Rigid anodized aluminum cone with indexed edge for pistonic accuracy and reduced resonance
- 2.5" 4-layer copper voice coil on a vented aluminum former for superior power handling and cooling
- Massive triple-stacked magnet assembly delivers exceptional strength and symmetry at high excursion
- Extensive venting through cone, pole piece, spider, and gap minimizes thermal buildup and compression
- Dual spider suspension with stitched tinsel leads for precise pistonic motion and enhanced durability
Product Manuals / Spec Sheets / Downloads
Dayton Audio SS10-22 Specification SheetDayton Audio SS10-22 Graphs/FRD/ZMA Data File
Buying Options
Dayton Audio SS10-22 10" Signature Series DVC Subwoofer
The Dayton Audio SS10-22 Signature Series 10" Subwoofer is designed to deliver serious output and accuracy in compact, high-performance subwoofer systems. Handling up to 700 watts RMS, this driver combines rugged construction with engineering refinements that allow it to excel in DSP-assisted sealed enclosures, compact vented systems, or passive radiator designs. The SS10-22 is a versatile solution for home theater setups, audiophile-grade music systems, and car audio installations where space is limited but impactful bass is a must.
Key Specs:
- Nominal Diameter: 10"
- Power Handling (RMS): 700W
- Power Handling (MAX): 1,400W
- Impedance: 2Ω + 2Ω (Dual voice coils)
- Frequency Response: 20 - 500Hz
- Sensitivity: 87.1 dB 2.83V/1m
- Voice Coil Diameter: 2.5"
- Maximum Linear Excursion: ±21 mm
Rigid Cone, Maximum Control

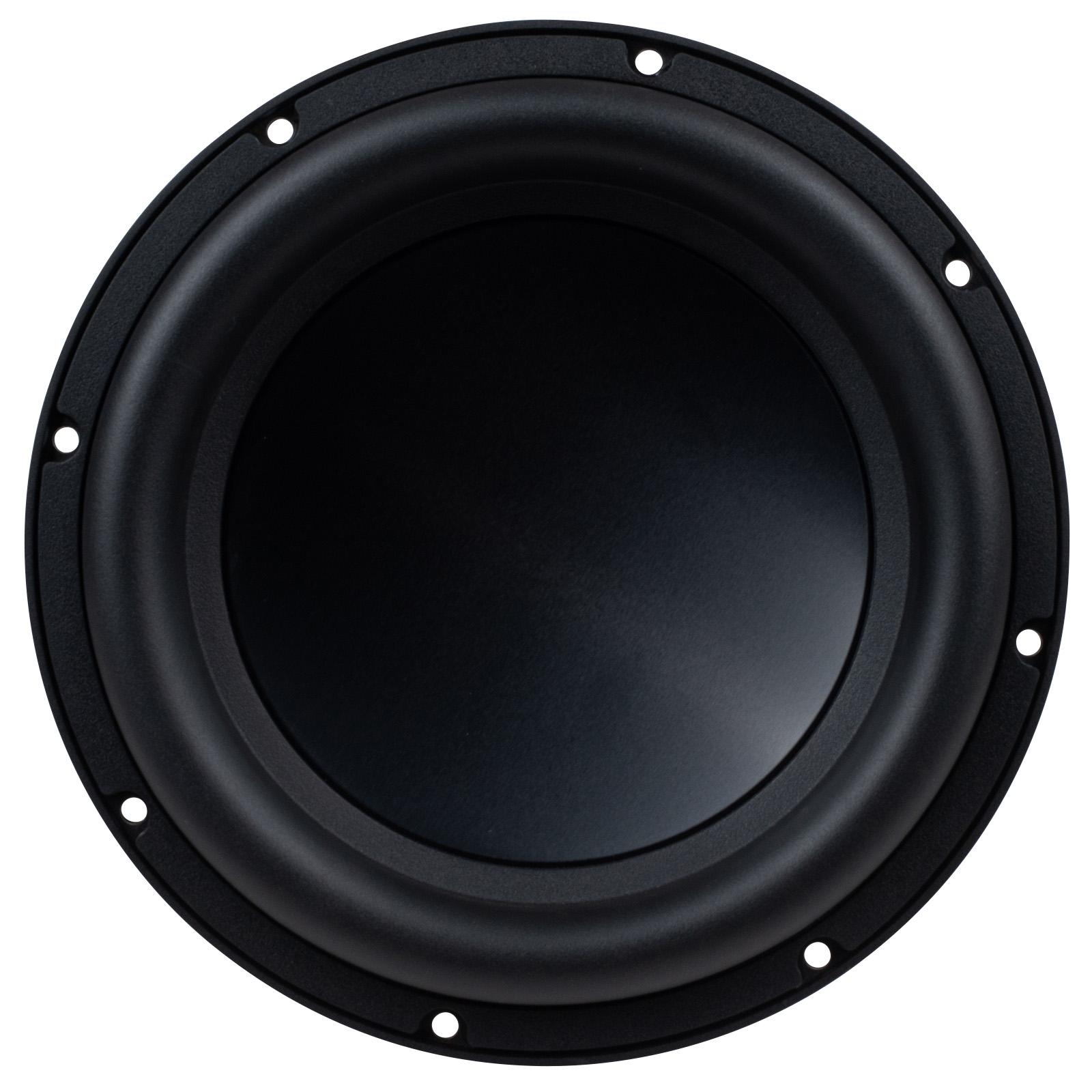

At the front of the SS10-22 is a thick anodized one piece aluminum diaphragm that delivers the ideal balance of strength and low mass. This rigid diaphragm resists flexing even under extreme excursion, ensuring pistonic accuracy across its full operating range. An indexed edge enhances cone-to-surround stability, minimizing resonances, while the high-roll butyl rubber surround provides the travel necessary for deep bass without reducing effective cone area.
2.5" Voice Coil with Advanced Cooling
The SS10-22 is driven by a 2.5" diameter, 4-layer copper voice coil wound on a vented aluminum former. This design maximizes motor strength by placing more conductor in the magnetic gap while the aluminum former conducts heat away from the coil. With extensive venting through the former, spider, pole piece, and cone, the SS10-22 maintains stable performance under heavy loads, minimizing power compression and ensuring reliable operation in demanding systems.
Optimized Motor for Low Distortion
Supporting the voice coil is a massive, FEA-optimized, triple-stacked magnet assembly that produces a strong and symmetrical magnetic field. This motor design allows for identical forward and backward cone movement, keeping distortion exceptionally low even at long excursion. Precision-machined plates with sculpted edges maximize magnetic flux through the gap, while an aluminum shorting sleeve, pole cap, and top plate ring linearize inductance. These refinements reduce non-linearities and extend clean response into the midbass range for tight, accurate sound reproduction.
Consistent Performance at High Excursion
To maintain precise control during extreme excursion, the SS10-22 incorporates a dual spider suspension system. The spiders are widely spaced to ensure stable coil and cone alignment, preventing rocking motion and preserving pistonic accuracy. Stitched tinsel leads are integrated into the top spider, protecting against fatigue and eliminating unwanted noise from lead movement. Together, these features guarantee durability and consistent performance in high-output systems.
Power, Control, Flexibility, and Reliability
Compact, powerful, and precise, the Dayton Audio SS10-22 Signature Series 10" Subwoofer is an excellent choice for space-conscious systems that demand serious bass. Whether you’re building a compact home theater sub, upgrading a hi-fi listening setup, or integrating into a car audio design, the SS10-22 delivers deep, impactful bass with the control and accuracy that set Dayton Audio’s Signature Series apart from the competition.
| Speaker Series | Signature Series |
| Model Number | SS10-22 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791011122 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 29 lbs. |
| Speaker Type | Subwoofer |
| Nominal Diameter | 10" |
| Power Handling (RMS) | 700 watts |
| Power Handling (max) | 1,400 watts |
| Impedance | 2 + 2 ohms |
| Sensitivity | 87.1 dB@2.83V/1m |
| Frequency Response | 20-500 Hz |
| Voice Coil Diameter | 63.5 mm |
| DC Resistance (Re) | 4.4 ohms |
| Voice Coil Inductance (Le) | 1.6 mH |
| Resonant Frequency (Fs) | 34 Hz |
| Mechanical Q (Qms) | 3.80 |
| Electromagnetic Q (Qes) | 0.45 |
| Total Q (Qts) | 0.40 |
| Diaphragm Mass Inc. Airload (Mms) | 180g |
| Mechanical Compliance of Suspension (Cms) | 0.122 mm/N |
| Surface Area Of Cone (Sd) | 344.5 cm² |
| Volume of Displacement (Vd) | 627 cm³ |
| BL Product (BL) | 19.4 Tm |
| Compliance Equivalent Volume (Vas) | 20.6 liters |
| Maximum Linear Excursion (Xmax) | 21 mm |
| Cone / Diaphragm Material | Aluminum |
| Surround Material | Rubber |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 266 mm |
| Overall Depth | 179 mm |
| Baffle Cutout Diameter | 236.7 mm |
| # Mounting Holes | 8 |
| Bolt Circle Diameter | 252 mm |
