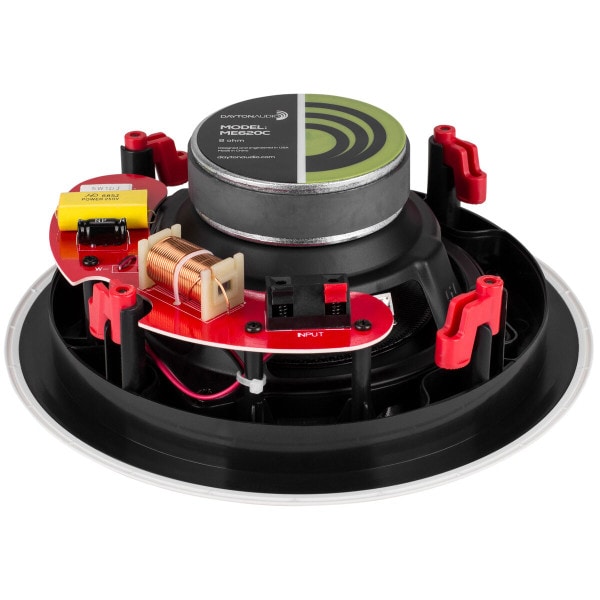

ME620C Micro Edge 6-1/2" Coaxial Ceiling Speaker Pair
Quick Overview
What the world really needs are ceiling speakers that sound spectacular, but have a look thats understated -almost invisible. Dayton Audio Micro-Edge coaxial ceiling speakers like the ME620C fill that need like no others on the market.Product Highlights
- The perfect "all speaker solution" for ceiling mounted home theater systems
- 15° angle provides cinematic imaging
- Contemporary Micro-Edge™ design
- Long-throw 6-1/2" Kevlar® woofer with rubber surround
- 1" pivoting silk dome tweeter
- 12 dB/octave optimized crossover
Product Manuals / Spec Sheets / Downloads
Dayton Audio ME620C User ManualDayton Audio ME620C Architectural & Engineering Specification Sheet
Buying Options
Dayton Audio ME620C 6-1/2" Coaxial Ceiling Speaker Pair
What the world really needs are ceiling speakers that sound spectacular, but have a look that's understated – almost invisible. Dayton Audio Micro-Edge coaxial ceiling speakers like the ME620C fill that need like no others on the market.
Quality Inside and Out
Fill your home with rich, audiophile-quality sound from Dayton Audio's Micro-Edge Series coaxial ceiling speakers, while offering a modern, stealth look for today's contemporary décor. Tough woven Kevlar cone woofers were selected for their inherent transient response quickness and ability to convey a warm response in the critical midrange, while delivering a bass punch that is missing from most ceiling speakers.
Installation Made Easy
1" silk dome tweeters provide pristine clarity for the top end of the frequency response spectrum. Additionally, ME620C ceiling speakers may be used as rear and/or side channel speakers in surround sound applications. Removable round steel grills are included.
Timbre Matched
All Dayton Audio Micro-Edge™ (ME-series) speakers are timbre-matched for a seamless and consistent home theater experience when used together.
Specifications:
- Diameter (including grill): 9-3/4"
- Mounting Depth: 3-1/4"
- Overall Depth: 4"
- Cutout Diameter: 8-1/4"
- Frequency Response: 50-20,000 Hz
- Woofer: 6-1/2" Black Woven Kevlar
- Tweeter: 1" Silk Dome
- Impedance: 8 Ohm
- Power Handling: 35W RMS
- Sensitivity: 88 dB 1W/1m
| Model Number | ME620C |
| Color | White |
| Unit of Measure | Pair |
| UPC | 848791000133 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 8.25 |
| Product Height | -- |
| Product Width | 9-3/4" (diameter) |
| Product Length | -- |
| Product Depth | 3-5/8" |
| Speaker Series | Micro-Edge Series |
| Speaker Application | Ceiling |
| Speaker Configuration | 376 |
| Input Rating | 346 |
| Power Handling (RMS) | 35 watts |
| Power Handling (max) | 70 watts |
| 70V Tap Settings | -- |
| Frequency Response |
45 - 20 000 Hz |
| Sensitivity | 89 dB @ 1W/1m (±3 dB) |
| Woofer Type | Kevlar |
| Woofer Diameter | 6-1/2" |
| Tweeter Type | Silk |
| Tweeter Size | 1" |
| Crossover | Yes |
| Special Features | -- |
| Grill Type | Metal |
| Replaceable Grill | -- |
| Magnet Material | -- |
| Magnet Weight | -- |
| Mounting Hole Size | 8-1/4" |
| Installation | -- |
| Box Includes | -- |
