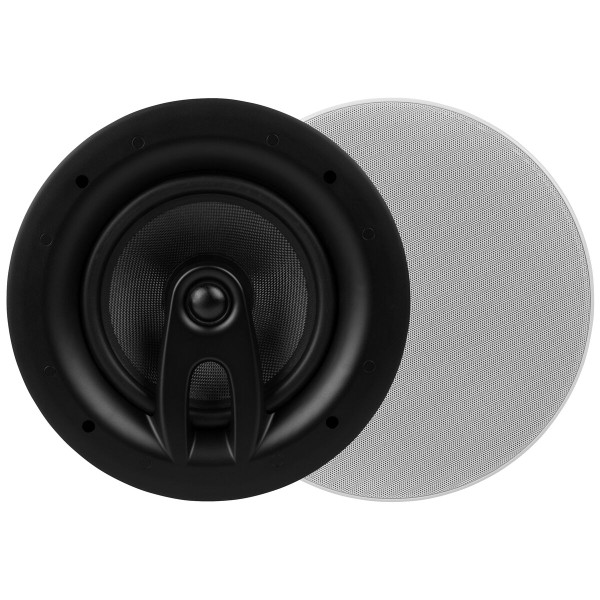

ME820C Micro Edge 8" Coaxial Ceiling Speaker Pair
Quick Overview
What the world really needs are ceiling speakers that sound spectacular, but have a look thats understated - almost invisible. Dayton Audio Micro-Edge coaxial ceiling speakers like the ME820C fill that need like no others on the market.Product Highlights
- Perfect for high-end whole house audio applications
- Contemporary Micro-Edge™ design
- Kevlar® cone woofers with butyl rubber surround
- Coaxially mounted 1" silk dome tweeter
- 12 dB/octave optimized crossover
Product Manuals / Spec Sheets / Downloads
Dayton Audio ME820C User ManualDayton Audio ME820C Architectural & Engineering Specification Sheet
Buying Options
Dayton Audio ME820C 8" 2-Way Micro-Edge Ceiling Speaker Pair
The Micro-Edge™ series in-wall and in-ceiling speakers from Dayton Audio combine sophisticated, minimalist styling with robust acoustical engineering and design features, for outstanding home theater and musical performance. The compact ME820C in-wall model installs virtually anywhere, and rewards with rich, detailed sound.
Quality Inside and Out

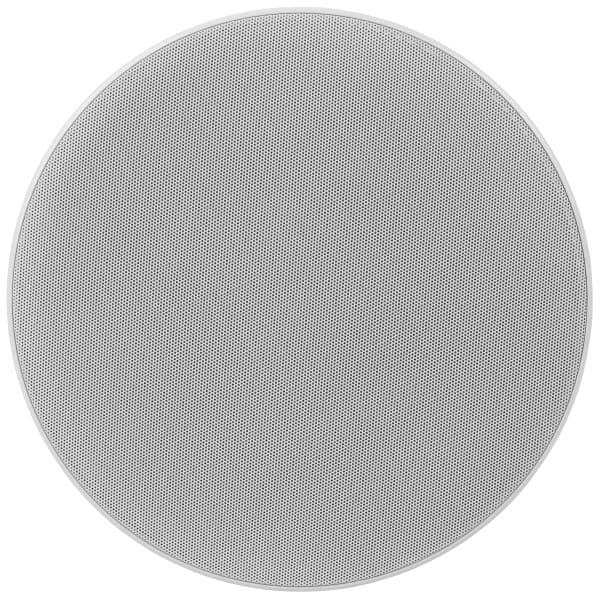

Dayton Audio’s Micro-Edge™ speakers were created to combine the high-quality sonic performance of a premium free-standing speaker with sleek, contemporary in-wall styling, for a thoroughly modern take on the in-wall speaker. The ME820C model features a compact design that’s easy to install virtually anywhere, even where space is limited, and is perfectly suited for use as left, right, or surround channels in a home theater application. The low-profile perforated grill with ultra-slim Micro-Edge™ frame almost disappears into the wall entirely, and is easily paintable to match its surroundings.
Installation Made Easy

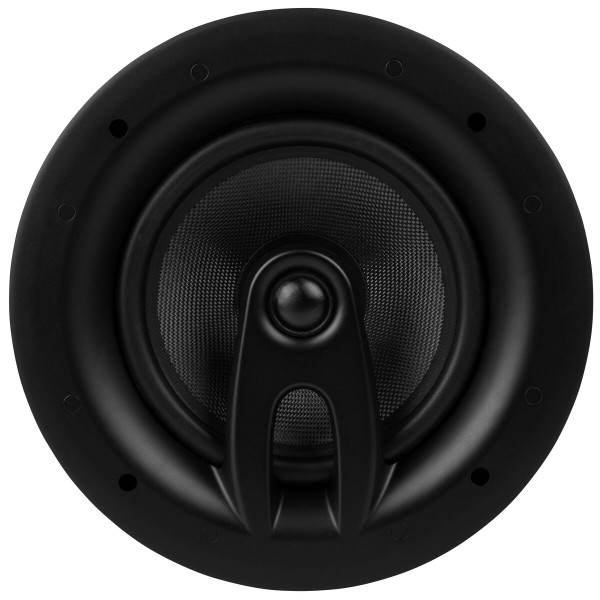

The robust 8" woofer features a rubber surround and a woven black Kevlar cone that provides excellent transient ‘snap’ and crisp vocal clarity along with impactful bass, and the 1" silk-dome tweeter delivers rich detail that never becomes harsh, even at high volumes. The pivoting tweeter mount lets you target the best treble performance directly at the listening position, and the three-position room integration switch lets you decrease treble output if desired, for the best balance with your room's natural acoustics.
Timbre Matched
All Dayton Audio Micro-Edge™ (ME-series) speakers are timbre-matched for a seamless and consistent home theater experience when used together. For horizontal installation (e.g. center channel), model ME525MTM is recommended.
Specifications:
- Overall Diameter (including grill): 11"
- Mounting Depth: 3-7/8"
- Overall Depth: 4-1/4"
- Cutout Size: 10" dia.
- Frequency Response: 30-20,000 Hz
- Woofer: 8" Black Woven Kevlar
- Tweeter: 1" Silk Dome
- Impedance: 8 Ohm
- Power Handling: 45W RMS
- Sensitivity: 88 dB 1W/1m
| Model Number | ME820C |
| Color | White |
| Unit of Measure | Pair |
| UPC | 848791000140 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 13.3 |
| Product Height | -- |
| Product Width | 11" diameter |
| Product Length | -- |
| Product Depth | 3-7/8" |
| Speaker Series | Micro-Edge Series |
| Speaker Application | Ceiling |
| Speaker Configuration | 376 |
| Input Rating | 346 |
| Power Handling (RMS) | 45 watts |
| Power Handling (max) | 90 watts |
| 70V Tap Settings | -- |
| Frequency Response |
30 - 20 000 Hz |
| Sensitivity | 89 dB @ 1W/1m (±3 dB) |
| Woofer Type | Kevlar |
| Woofer Diameter | 8" |
| Tweeter Type | Silk |
| Tweeter Size | 1" |
| Crossover | Yes |
| Special Features | -- |
| Grill Type | Metal |
| Replaceable Grill | -- |
| Magnet Material | -- |
| Magnet Weight | -- |
| Mounting Hole Size | 10" diameter |
| Installation | -- |
| Box Includes | -- |
